How is Denim Fabric Made?
How is Denim Fabric Made?
Denim is a durable cotton twill fabric famous for blue jeans. Its journey from cotton plant to finished cloth involves many steps: harvesting and ginning cotton, spinning fibers into yarn, dyeing (especially with indigo), preparing yarn for weaving, weaving the twill fabric, and finishing treatments. Below we explore each stage in detail.

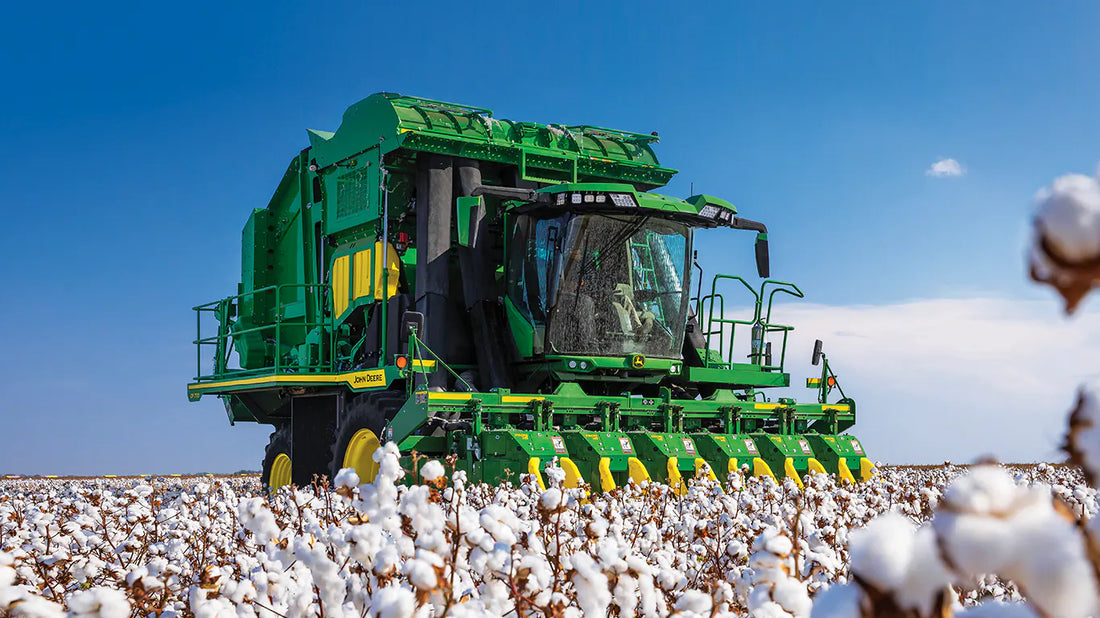

Cotton Harvesting and Ginning
Denim begins with cotton, a natural fiber grown in bolls. Once harvested, the seed cotton goes to a cotton gin. The gin dries and cleans the raw bolls, then mechanically separates the cotton fibers from the seeds and debris. The cleaned fibers are pressed into bales for transport. In summary, ginning converts harvested “seed cotton” into loose cotton fiber by cleaning and removing seeds.
Turning Fiber into Yarn
At the mill, cotton fiber undergoes preparation for spinning. First the bales are opened and cleaned of trash. Then fibers go through carding, a process of aligning and disentangling them. During carding, the loose cotton becomes a continuous, fluffy strand called a sliver. In the carding machine, wire-toothed cylinders comb the fibers straight, aligning them and removing dust or short bits.
Next, the milky-slivers from carding are drawn together and elongated. Multiple slivers are combined and passed through roller-drafting machines, which stretch and blend them into a uniform strand. This further aligns the fibers and levels the thickness. In some mills, long fibers are combed to remove still-shorter bits; combed cotton yields smoother, finer yarns. The drawn (and possibly combed) sliver is collected for spinning.
Finally, the prepared cotton is spun into yarn by inserting twist. There are several spinning methods (ring, open-end/rotor, air-jet), but for denim the most common is open-end (rotor) spinning. A high-speed rotor spins the sliver into yarn directly, without a roving stage. In fact, over 95% of cotton yarn for denim in the U.S. is made by rotor spinning. The yarn from spinning is wound onto packages or cones, ready for dyeing or weaving.
Dyeing the Yarn (Indigo Dyeing)
A key feature of denim is its blue color, traditionally from indigo dye. In most denim production, only the warp (lengthwise) yarns are dyed with indigo; the weft (crosswise) yarns are left undyed (white). This gives denim its characteristic look – blue on the face and lighter on the back.
Industrial indigo dyeing typically uses continuous methods. One common approach is rope dyeing. In rope dyeing, hundreds of yarns are bundled together in a loose rope. This rope is repeatedly dipped into an indigo dye bath then exposed to air (oxidized) to fix the color. Each dip adds a thin layer of blue; by doing 3–12 dips, a deep navy is built up on the yarn. Between dips the yarn ropes are washed and oxidized so that indigo (a vat dye) adheres strongly in layers.
Some mills use slasher (sheet) dyeing instead. Here the warp yarns are wound into a sheet (on a warper beam) and run through dye baths in one continuous pass. A slasher machine may loop the sheet through several indigo baths, but because the yarns move continuously, only fairly light to medium shades can be achieved. (Rope dyeing with multiple stops is generally required for very dark denim.) In either method, after indigo dyeing the yarns are washed to remove excess dye. The result is cones of yarn – indigo-dyed for warp, undyed for weft – ready for weaving.
Preparing the Warp (Warping and Sizing)
Before weaving, the dyed warp yarns must be arranged for the loom. In warping, yarn packages are creeled (loaded) onto a frame and wound together onto large warp beams. Often this is done in sections: for example, six “section beams” each with 400 yarn ends can be combined to make a 2,400-end beam. Warping machines ensure all warp yarns have equal tension and do not tangle. The final warp beam holds thousands of parallel, indigo-dyed yarns ready to feed the loom.
Next comes sizing (also called slashing). Because warp yarns run under high tension and rub against loom parts, they are coated with a protective adhesive (starch or synthetic size). The size forms a uniform film around each yarn, smoothing stray fibers and increasing strength. This “sizing” step greatly reduces breakage during weaving: it lays down protruding cotton fibers and raises the yarn’s resistance to stress. After sizing, the warp yarns are dried (often on the same beam) and taken to the weaving shed.
Weaving the Denim
With the warp in place, the actual fabric is woven. Denim uses a twill weave, typically a 3×1 right-hand twill. This means each warp thread passes over three weft threads and then under one, repeating every four picks. (The diagonal twill line rises from left to right on the fabric face.) This structure gives denim its strength and diagonal rib.
On the loom, the loom harness lifts and lowers sets of warp ends (called shedding), a weft yarn is inserted (picking), and a reed “beats up” each pick to form the fabric. Weft insertion can be by various methods. Traditionally, a shuttle loom was used: a shuttle carrying a quill of yarn is thrown back and forth through the warp threads. Shuttle looms produce a self-finished edge (selvage) on both sides of the fabric. Modern mills often use shuttleless looms (rapier, projectile, or air-jet) for speed. For example, rapier looms use metal “rapier” arms to pull yarn across, and air-jet looms blow yarn with compressed air. (Air-jet looms can reach 600–1200 picks per minute for heavy fabric.)
During weaving, indigo-dyed warp yarns dominate the face, while undyed weft yarns peek through less. A shuttle carrying a filling (weft) yarn passes through the warp shed, placing picks back and forth. The result is sturdy, heavy denim fabric. It may have a clean selvage on edges if a shuttle loom was used.
Fabric Finishing (Sanforization and Others)
After weaving, the raw denim cloth is “loomstate” (unsized and rigid). Before cutting into garments, mills often pre-shrink the fabric. The best-known process is sanforization. In sanforizing, the fabric is dampened and then passed between a stretched rubber belt and a heated cylinder. As the cloth is pressed and released, it “creeps” slightly, permanently shrinking it in both directions. The goal is that the finished garment will not shrink much in use: sanforized denim typically shrinks only about 2–3% after washing, whereas unsanforized (loomstate) denim can shrink up to ~10%.
Other mechanical finishing steps may be applied. For example, some denim is mercercised (treating with caustic soda) to increase luster and strength, or enzyme washed (pre-shrinking with enzymes). Mills also often tighten or relax the fabric (with tumbling or heat) to stabilize it. In all cases, the aim is a soft, stable cloth. Finally, the fabric is inspected, folded, and shipped as bolts of denim.
Denim Washing and Distressing
Many denim garments undergo optional post-weave washing or distressing for appearance. The classic technique is stone washing: jeans or fabric are tumbled in large washers with pumice stones. The stones repeatedly abrade the fabric surface, fading the indigo and softening the cloth. This gives a worn, aged look. (Stone washing increases softness but can shorten fabric life.)
A more modern alternative is enzyme washing (“bio-stoning”). Here cellulase enzymes are added to a wash. The enzymes break down tiny cellulose fibers on the denim surface, gently freeing indigo particles. The result is a faded, vintage look and very soft hand, similar to stone wash. Enzyme washing uses less water and is more eco-friendly than heavy stone washing. Both techniques – stones or enzymes – are typically done on finished garments in large industrial washers, followed by rinsing and drying.
Other wash treatments include bleach or acid washes (using chlorine or chemical agents for contrast effects) and stone washes with soaking (longer cycles). Whiskering (intentional fading at crease lines), sanding, or laser fading may also be applied for style. These are garment-finishing steps; the raw denim fabric is often “one-washed” at the mill to remove sizing and slightly soften it before sale.
In summary, denim manufacturing transforms cotton into the familiar blue twill through a series of steps: cotton ginning; fiber preparation and spinning; selective indigo dyeing of warp yarn; warp warping and sizing; and twill weaving on looms. The woven fabric is then stabilized by finishes like sanforization. Finally, optional treatments (stone or enzyme washes) give jeans their characteristic worn-in appeal. Each stage uses technical processes – warp and weft yarns, shuttle looms, vat dyeing, slasher machinery, etc. – to craft denim’s robust yet comfortable material.
